Detail of Network Manager

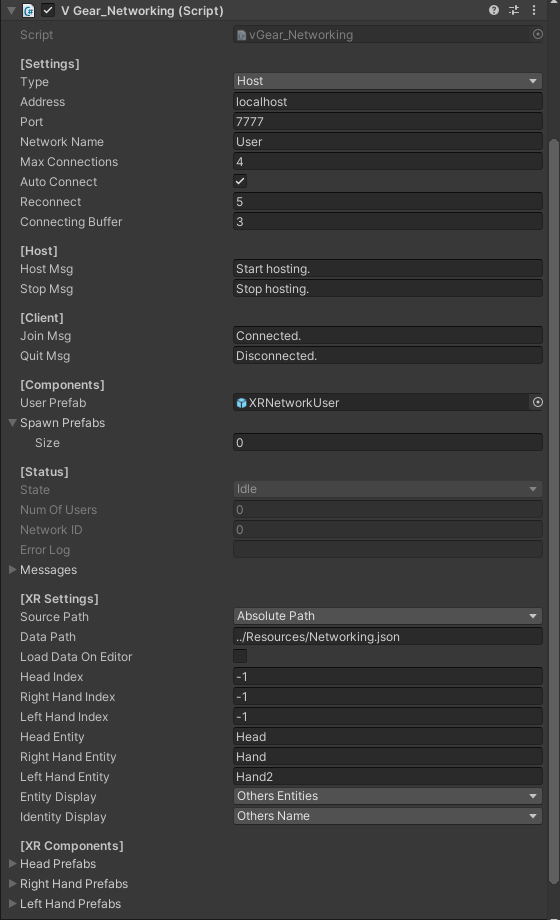

This page described the detail of V Gear_Networking (Script).

Note: This page is still Under Construction.

[Setting]

Type	User type of current connection.
Address	Address of connection.
Port	Port of connection.
Network Name	Network user name of current user.
Max Connections	Maximum number of users.
Auto Connect	Enable to auto start connection on start.
Reconnect	Auto reconnect times when connection is failed.
Connecting Buffer	Buffer for connection.

[XR Settings]

Data Path	External networking setting file path of XR system. Recommend to use "../Resources/Networking.json, The detail of data will be introduced below.
Head Index	Default head entity model index.
Right Hand Index	Default right hand entity model index.
Left Hand Index	Default left hand entity model index.
Head Entity	The name of head entity.
Right Hand Entity	The name of right hand entity.
Left Hand Entity	The name of left hand entity.
Entity Display	Entity type to be displayed.
Identity Display	Identity type to be displayed.

[XR Components]

Head Prefabs	Networking head prefabs. The prefab will be instantiated with the head index read from the networking data of the executable.
Right Hand Prefabs	Networking right hand prefabs. The prefab will be instantiated with the right hand index read from the networking data of the executable.
Left Hand Prefabs	Networking left hand prefabs. The prefab will be instantiated with the left hand index read from the networking data of the executable.
