Scene View
The Scene View is accessible under the Edit tab, it visualizes the Scene in 3D space. While in Edit Mode, the Scene View allows you to navigate and edit the scene, and interact with different objects in the scene. While in Debug Mode, the Scene View simulates the final visual representation of the created XR scene in first-person perspective, where you can test out the interactions designed for the scene.

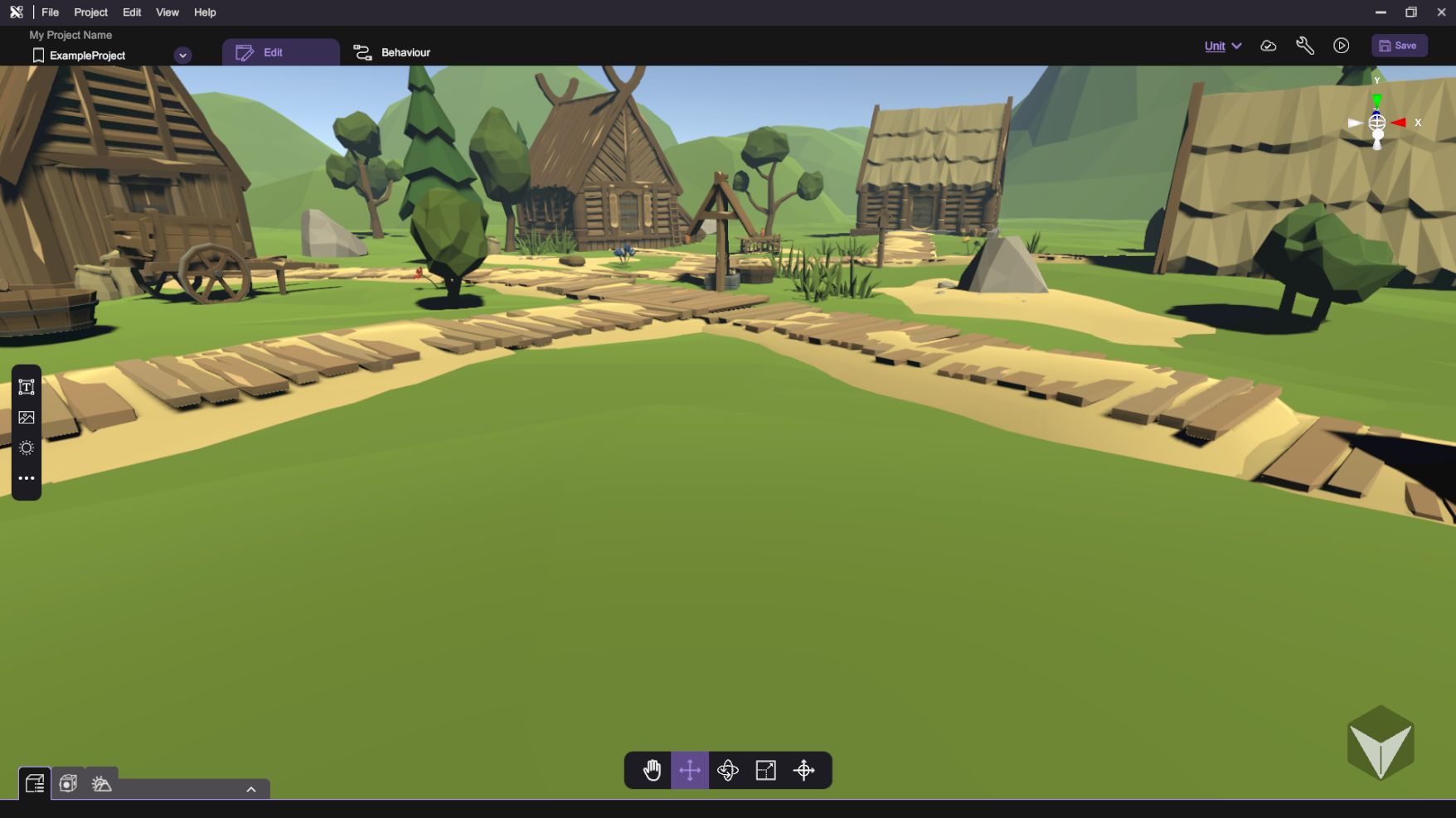

A collection of Assets arranged on the left side of the interface, with the Edit Tools positioned at the bottom of the frame. The Edit Tools section displays your current editing tool and enables you to choose a different tool through a simple mouse click.
Edit Mode
To navigate the user's view in Edit Mode, different navigation tools can be used.
Mouse Control
| Action | Control |
|---|---|
| Move the view | Drag with Middle Mouse Button (or Left Mouse Button with Look Tool). |
| Rotate the view | Drag with Right Mouse Button. |
| Move forward / backward | Scroll with Scroll Wheel. |
Flythrough Mode
By clicking and holding the Right Mouse Button on the scene, the control enters Flythrough mode, allowing the user to control the view using the keyboard.
| While holding Right Mouse Button | |
|---|---|
Scene Gizmo
The Scene Gizmo can be found in the upper-right corner of the scene; the 6 conical arms are always aligned to the X, Y, and Z axis, with the 3 labelled colored arms representing the positive direction.
By clicking on the conical arm, the viewing angle will snap to the axis represented by the arm.
Debug Mode
The Debug Mode can be initiated by pressing "Debug Mode" () in the Edit tab. During Debug Mode, you assume the perspective of the robot in the scene and use the keyboard to control.
Debug Mode Control
| Action | Key |
|---|---|
| Move forward | W |
| Move backward | S |
| Move left | A |
| Move right | D |
| Look | Mouse |
| Interact | LMB |
| Grab | RMB |
| Button 2 | MMB |
| Jump (when Gravity is Enabled) | Space |
| Move up (when Gravity is Disabled) | Space |
| Move down (when Gravity is Disabled) | Shift |
To return to Edit Mode, press Esc.
